BLSP608E

Features:

1. Supports both mobile App and RF remote control;
2. Support the output of 8 different lightng effects,sutable for a variety of occasionsto meet the different needs of customers;
3. Supports common single-wire LED driver ICs in the market;
4. Build in music and non-music effects,multi-parameter adjustable;
5. Built in grouping control functon,supporting any combination control of 8 channels;
6. Built in trigger function,supporting the customization o trigger effect parameters;
7. 5~24V DC wide range working voltage,preventing reverse connection of power supply;
8. With Power down save setting parameter function.

App:

• SP608E supports control by App, supports ioS and Android system.
• Apple devices are required IOS 10.0 or later, Android devices are required Android 4.4 or later, you can search
  “BanlanX”in the App Store or Google Play to find the app, or scan the QR code to download and install:

App Operations:

• Open the app and click the
  button in the top right corner of the home page to add a device,then click the device to enter the control page.
  ·User can rename the controller by clicking on
  button in the upper right corner.
• SP608E can output 8 way different signals,You can click channel1~channel 8 to enter the corresponding page fo individual control,or cickall channels
  for unif ied control.
• After adjusting the effect of each channel,cick
  button in the upper right corner to save the current lighting effect settings to the scenes,SP608Esupports a total of 9 scenes,users can call these 9 scenes through the scene page of the mobile app or use the RF remote control.
• Users can setup to five timing events by cicking on button in the upper right corner,please note thatall iming events will be deleted when thee
  controller is powered down.
• On the effects page,there are a variety of music and non-music effects,and users can set the speed,brightnes,effect length and color for specific effects.
• On any single-channel page,click the upper right corner
  button to verify the color and copy the channel,and copy the effect of the current channel toany other channel;
• On the trigger page,there arefour triggers,and each trigger has preset effects and dynamic effects,Click the button of the trigger to switch between
  preseteffect and custom effect,You can cdick any of the trigger area to enter the dynamic effect selection interface.Click the upper right cornerbuttonto confirm the selected effect,and the upper left cornerbutton to cancel.Long press the trigger area to change the triger name,trigger lasting time,trigger channel.
• On the grouping page,click the
  +button in the lower right corner to add groups,select the channel associated with groups,and click OK to set the namesof groups.The group page shows the added groups,and clicking in controls the effect mode of the channel associated with the group.

RF Remote Functions:

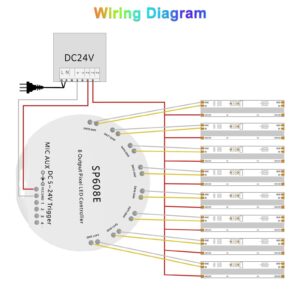

Wiring:



Key Features:

• Dual Control Modes: Operate via the BanlanX mobile APP (iOS & Android) for advanced customization or the included RF remote for quick, wireless control up to 30 meters.
• 8 Independent Outputs: Supports up to 600 pixels per channel, with a maximum total of 4800 pixels. Each channel can run distinct effects or be grouped for synchronized shows.
• Wide Compatibility: Works with most single-wire LED ICs, including WS2811, WS2812B, WS2813, SK6812, UCS1903, and more.
• Music & Dynamic Effects: Built-in microphone for sound-activated light shows. Features 12 music modes, 24+ dynamic effects, and 16 million customizable colors.
• Advanced Functions: Built-in grouping & trigger functions, parameter memory (power-off save), and anti-reverse connection protection.
• Wide Voltage Input: Operates on DC 5V–24V, suitable for various LED setups.

Applications:

Ideal for architectural lighting, home theater, commercial displays, KTV/bar ambiance, cove lighting, automotive RGB projects, and any installation requiring multi-zone, addressable RGB/RGBW pixel control.

Specifications:

• Input Voltage: DC 5V–24V
• Output: 8-channel SPI (TTL)
• Max Pixels: 4800 (600/CH)
• Control: Bluetooth APP + RF Remote
• Working Temp: -20℃ to 60℃
• Dimensions: Ø100 × 48mm

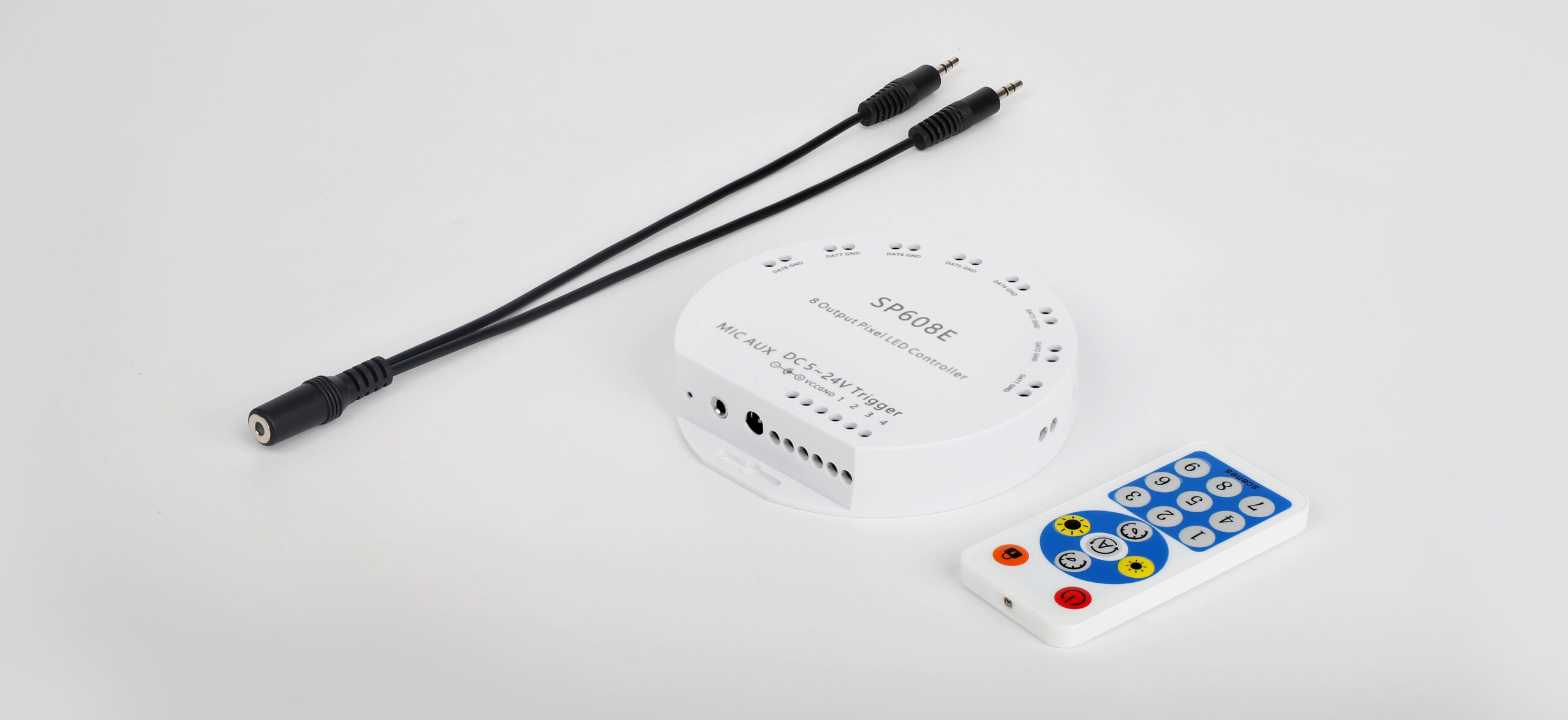

Package Includes:

• 1 × SP608E Controller
• 1 × RF Remote Control
• 1 × DC Power Cable
• 1 × Screwdriver & User Manual
