BLSP701E

Controller Description:

1.Product Features:

• Visual APP Interface Provides an intuitiveuser experience.
• Preview LightingEffects Convenient forusers to adjust.
• Supports AutomaticFrame Synchronization Achieves automaticsynchronization oflighting effects.
• No Need to DistinguishBetween Master/Slave Simplifies configurationand facilitates systemoperation.

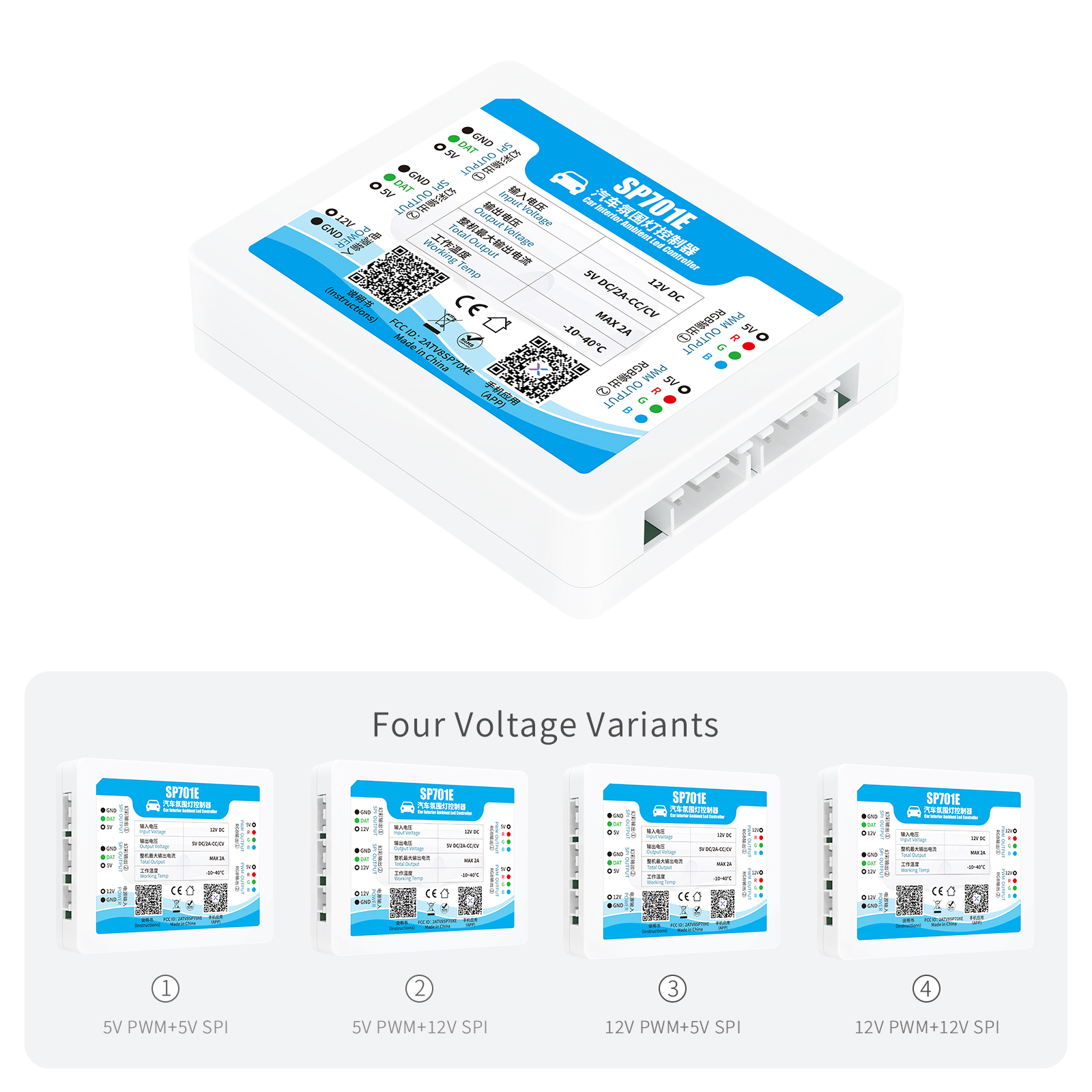

• Lamp Voltage Combination Meets the powerrequirements ofvarious LED lamps.
• Whole CarGlobal Control Whole car mode/Partitioned mode.

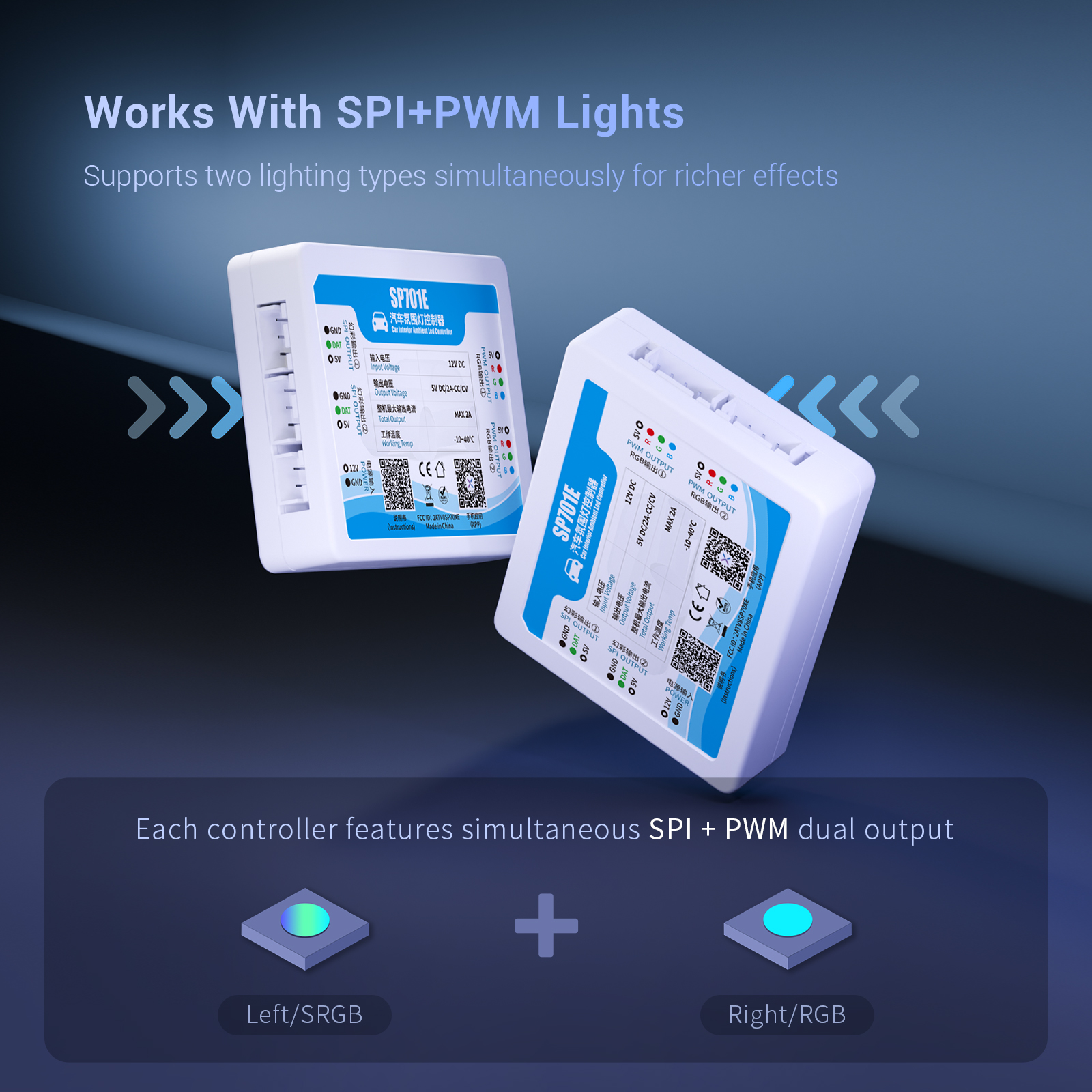

• SPl+PWM Dual Lamps Achieves a widercombination oflighting effects.
• Various OptionalCombinationMethods Satisfes the atmospherelighting needsof different cars.
• Equipped withCurrent DetectionCircuit Ensures the stabilityand safety of thecontroller.
• Cutting off thepower supply tothe lighting fxtures Reduces energy consumptionand extends battery life.
• SupportsLamp ColorCalibration Achieves uniformcalibration ofcar lights.
• PasswordManagementFunction Enhances thesystem’s security.

2.Controller Optional Combination Methods:

A.Configuration Method:

• Method 1: Whole Car Configuration.
• Method 2: Central Control Standalone Configuration.
• Method 3: Doors Standalone Configuration.

B. Controller Combination Method:

• Method 1: Central Control *1 +Doors *4.
• Method 2: Central Control *1.
• Method 3: Doors *4.

Notes:

1.Each central control controller can control: Central Control Light SPI+ Footwell Light PWM.

2.Each door controller can control: 1 Door Light SPl + 1 Storage Light PWM.

APP User Instructions:

• APP Download InstructionsMethod 1:Scan the QR code on the left todownload and install.
  Method 2:Search for “BanlanX”in the App Storeor Google Play to download and install.
  (Supports only iOS 10.0 and above,Android 4.4and above systems)





  2. APP Connection Controller Proces:

• Adding the First: Click the “+”in the top rightcorner of the APP homepage,select “Add Device,”and choosethe controlleryou need to addfrom the search list;
  When there are multiplecontrollers in a car,multipledevices willbe found;they needto be added one by onesequentially.
• Create a New car: When adding for the first time,you need to create a new car first,enter the car name,and clicksave to complete the car creation.
• Select the Installation Area forthe First Controller: The light strip controlled by thecontroller being added will flashin white quickly,indicating thelocation of that controller;in theAPP,select the areacorresponding to the actualinstallation location,and choosethe correct installation area basedon the light prompt;
• M Right front door
• After successful addition, you will directly enter the control interface; the first controller added to the car is set as the master by default, and a”M” identifier will be displayed in front of the area name.
• Adding the Second Controller: Return to the homepage andadd the second controllerfollowing the methoddescribed in step ①;
  Then select the car that hasalready been created.
• Select thecorresponding locationin the APP’s installationarea according to theactual installationposition(based on thelight prompt),Apart from the first controlleradded as the master controller, by default, all other controllers, regardless of the order added, are considered sub-controllers. When choosing the installationarea, ensure the area in the APP corresponds to the actual location of the controller. Add all car controllersfollowing the above method.

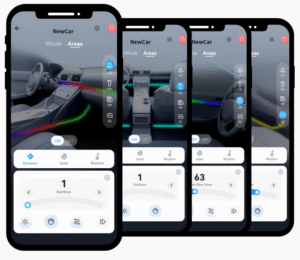

• After successful addition, you willre-enter the control interfaceYou can adjust the lighting effects through [Dynamic],[Solid],[Rhythmm] based on the car’ s whole or partitioned location.

3.APP Car Light Adjustment Instructions: Whole Car Mode Unified control of the entire car’s lighting

You can control the lighting by switching betweenWhole -[All ],Whole -[ARGB],and Whole -[RGB]

Areas Mode Independent control of car area lighting

You can independently control partition lighting by switching C/P,FW,DR, SG.

APP Settings Instructions:

1.Rename:Allows modification of the car name.
2.Device:You can select the car controller to delete thedevice orupgrade its firmware.
3.Color Calibration:Select the corresponding position ofthe car light to calibrate its color,preventing issues likeinaccurate light colors.
4.Device Password:Management of the car light’ssecurity password.

• Dual Control & Universal Compatibility: Master your car’s ambiance via the BanlanX mobile APP (iOS/Android) or voice-assisted commands. Works with both SPI addressable RGB LEDs and PWM analog strips, supporting 5V/12V automotive LED types (WS2812B, SK6812, RGB PWM strips) for universal fit across 99% of car models.

• 16 Million Colors & Dynamic Modes: Unlock unlimited customization with 16 million true colors, 20+ preset modes (breath, fade, chase, strobe), and music-sync technology—lights pulse in real-time with in-car audio, podcasts, or phone music via a built-in high-sensitivity microphone.

• Multi-Zone & Smart Integration: Control up to 4 independent lighting zones (footwells, door panels, center console, dashboard) separately or sync for whole-car cohesion. Supports CarPlay/Android Auto integration for convenient control via your vehicle’s infotainment screen.

• Automotive-Grade Durability: Built for the road with IP65 waterproof rating, wide working temperature (-10℃ to 60℃), and 12V DC input (compatible with car cigarette lighters or direct battery connection). Features over-current protection and anti-reverse wiring to safeguard your vehicle’s electrical system.

• Plug-and-Play Installation: No professional tools or permanent modifications needed—adhesive LED strips and a user-friendly wiring harness make setup in under 2 hours. Power-off memory retains your favorite settings for instant use on startup.

• Affordable Luxury Upgrade: Transform base-model cars into premium interiors with factory-style ambient lighting at a fraction of OEM retrofit costs.

• Safety & Comfort Focus: Soft, non-glare illumination reduces night-driving eye strain while enhancing visibility of pedals and gear shifts. Avoids distracting colors (complies with road safety standards) for a refined experience.

• Long-Lasting Performance: Car-grade LED drivers and color calibration technology ensure uniform glow and no color drift—outperforming cheap aftermarket controllers.

• Perfect for Car Mods: Ideal for show cars, off-road vehicles, or daily drivers—adds a personalized touch that stands out on social media and impresses passengers.

• Daily Commutes: Set calming warm tones or energizing cool colors to match your mood during traffic.

• Road Trips: Sync lights with music for a party vibe, or create a relaxing ambiance for long drives.

• Ride-Sharing Services: Elevate passenger experience with premium ambient lighting that feels like a luxury vehicle.

• Car Shows/Meetups: Showcase custom multi-zone effects and color combinations to highlight your vehicle’s modifications.

• Night Driving: Reduce eye fatigue with soft footwell and door lighting that enhances cabin visibility without blinding the driver.

• Input Voltage: DC 12V (car standard)

• LED Compatibility: SPI RGB (WS2811/WS2812B) + PWM RGB strips

• Control Modes: BanlanX APP + CarPlay/Android Auto

• Working Temperature: -10℃ to 60℃

• Waterproof Rating: IP65

• Installation: Plug-and-play (adhesive strips + wiring harness)

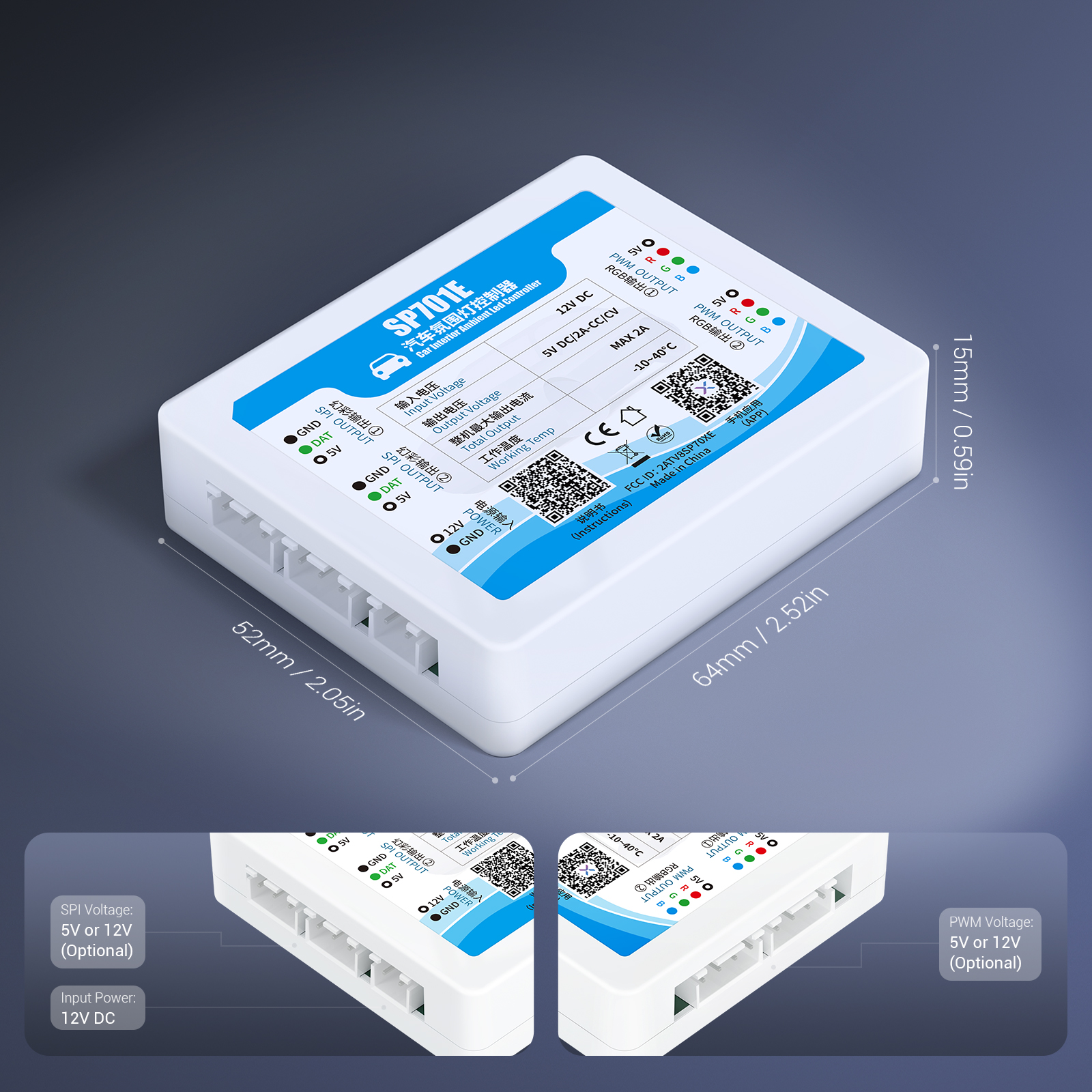

• Dimensions: 64mm × 52mm × 15mm (compact for tight car spaces)

• 1 × SP701E Car Ambient LED Controller

• 4 × RGB LED Strip Lights (1m each)

• 1 × Wiring Harness (cigarette lighter/Direct Battery)

• 1 × Mounting Bracket & Adhesive Tapes

• 1 × English User Manual
