BLSP543E

Product Features:

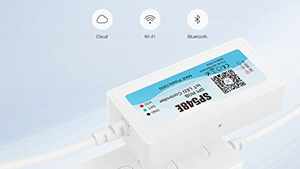

• APP Control:Utilizes a dual-mode master control chip forefficient Bluetooth networking,supporting Bluetooth,WiFi,and remote cloud connections.
• voice Controlvia Smart Speakers:Integrated with smart speaker platforms such as Alexa,Google Home,XiaoDu,and XiaoAi,allowing for control of lighting on/off brightness,and colorthrough voice commands.

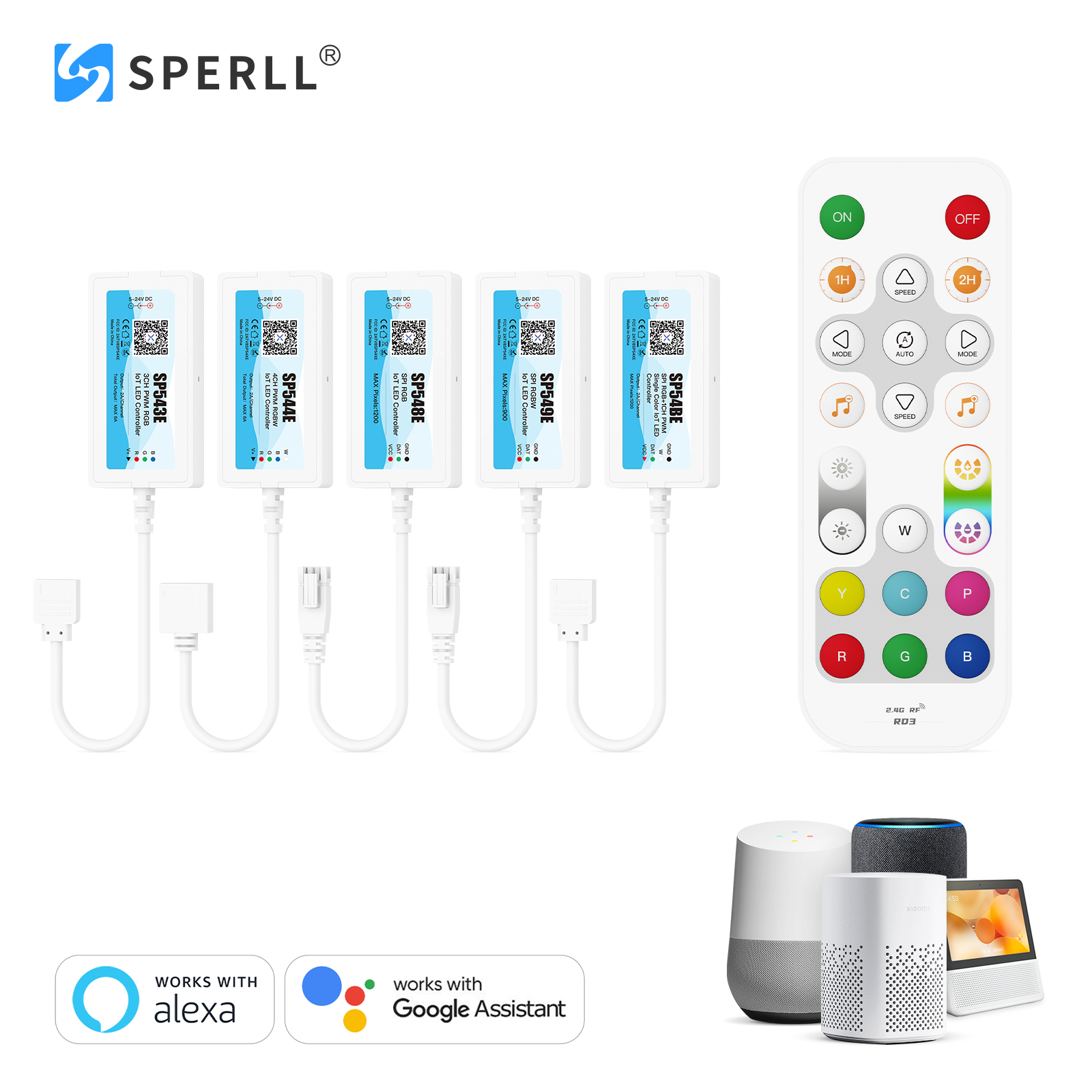

• Standard RD3  2.4G RF remote control included.
• Built-in a variety of dynamic and music effects,with customization available.
• supports music cllection methods via smartphone microphones,playerstreaming,and onboard microphones.
• Supports channel sequence calibation and timed switches
• supports OTA firmware upgrades to maintain the device at its best state
• Connects to “BanlanX”Cloud,achieving stable loT cloud connectivity.
• supports automatic device connection and reconnection upon APPlaunch,as well asgroup control of multiple devices.

APP:

Support ioS system or Supports Android system Download and install.

1.SP543E supports App control for ioS and Android devices.
2.Apple devices require ioS 10.0 or higher,and Android devices require Android 4.4 or higher.
3.You can search “Banlanx”in App Store or Google Play to find the APP,or scan the QR codeto download and install.

Operations：

•  Open the App,click the“ + ”icon in the top right corner of the home page to add device;
  Click the icon in the upper right corner of the App to enter the settings page,where you
• Click the “Settings” icon in the upper right corner of the App to enter the settings page,whereyou can modify the device name,set the timings,set the on/offeffect,OTA firmwareupgrade,etc.

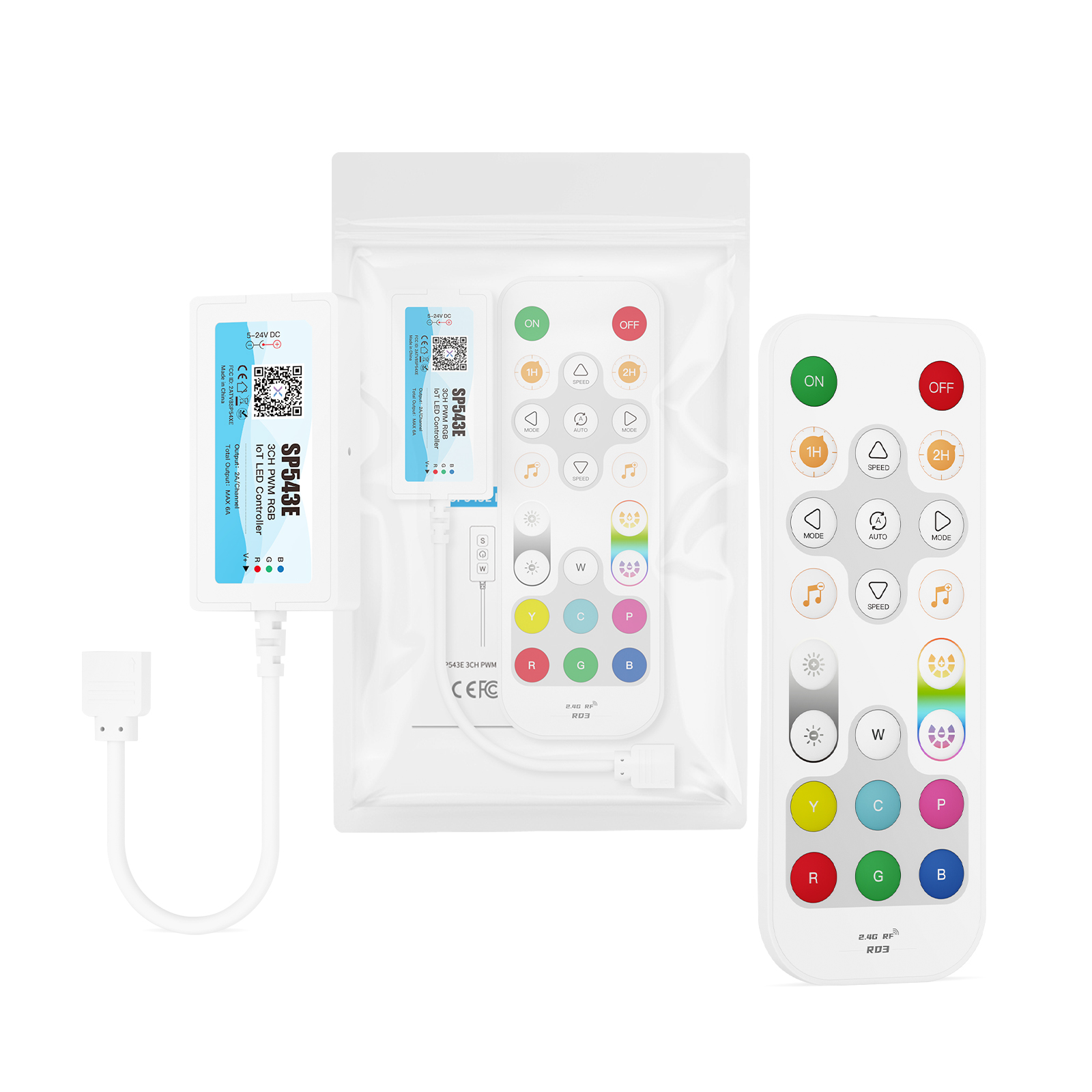

Work With 2.4G Remote Control，The2.4G remote control models(RD3)matched with SP543E are as follows:

• ON Button: Short press:Turns on the light. Long press:Long-press the “ON” buttonwithin 20 seconds of powering on thecontroller to bind/unbind the remote control.
• OFF Button: Short press:Turns off the light. Long press:Within 20 seconds of poweringon the controller,first turn off the light completely,then long-press the “OFF” buttonto clear all paired remote controllers.
• Speed+/-
• Timed 1/2H Delay-OFF
• ALL Effect Cycle
• Mode+/-
• Music+/-
• Brightness+/-
• Color+/-
• Color Select

W: Wite ,

Y/C/P: Yellow/Cyan/Purple

R/G/B: Red/Green/Blue

Support one-to-many control,one remote control can control multiple controllers.Support many-to-one control,each controller can bind up to 5 remote controls.



Smart Speaker Control:
• Hey Google/Alexa, turn on bedroom light
• Hey Google/Alexa,set the bedroom light to warm white
• Hey Google/Alexa,set the brightness of bedroomlight to 80%
• Hey Google/Alexa,set the color temperature ofbedroom light to 3000K
Integrated with smart speaker platforms like Alexa,Google Home,XiaoDu,XiaoAi,enabling voice commands for light switches,brightness,and color control.
The specific connection method can be viewed in the BanlanX APP for details: Login ID→Enter-My Page→Click-Third party intelligentvoice platform。
