BLSP544E

Product Features:

• APP Control:Utilizes a dual-mode master control chip forefficient Bluetooth networking,supporting Bluetooth,WiFi,and three types of remote cloud connections.
• Voice Controlvia Smart Speakers:Integrated with smart speaker platforms such asAlexa,Google Home,XiaoDu,and XiaoAi,allowing for control of lighting on/off brightness,and colorthrough voce commands.
• standard RD32.4GRF remote control included.
• supports independent dynamic white and color ighting,music synchronization,andcustom effects,offering awide range of options for lighting and atmosphere creation.
• supports music cllection methodsvia smartphone microphones,player streaming,andonboard microphones.
• supports channel sequence calibration and timed switches.
• supports OTA firmware upgradesto maintain the device in optimal condition.
• Connects to “BanlanX”Cloud,achieving stableloT cloud connecivity.
• supports automatic device connection and reconnection uponAPP launch,as well asgroup control of multiple devices.

Mobile control application：

Support ioS system or Supports Android system Download and install.

1.SP544E supports App control for ioS and Android devices.
2.Apple devices require ioS 10.0 or higher,and Android devices require Android 4.4 or higher.
3.You can search “Banlanx”in App Store or Google Play to find the APP,or scan the QR codeto download and install.
Operations：
•  Open the App,click the“ + ”icon in the top right corner of the home page to add device;
Click the icon in the upper right corner of the App to enter the settings page,where you
• Click the “Settings” icon in the upper right corner of the App to enter the settings page,whereyou can modify the device name,set the timings,set the on/offeffect,OTA firmwareupgrade,etc.

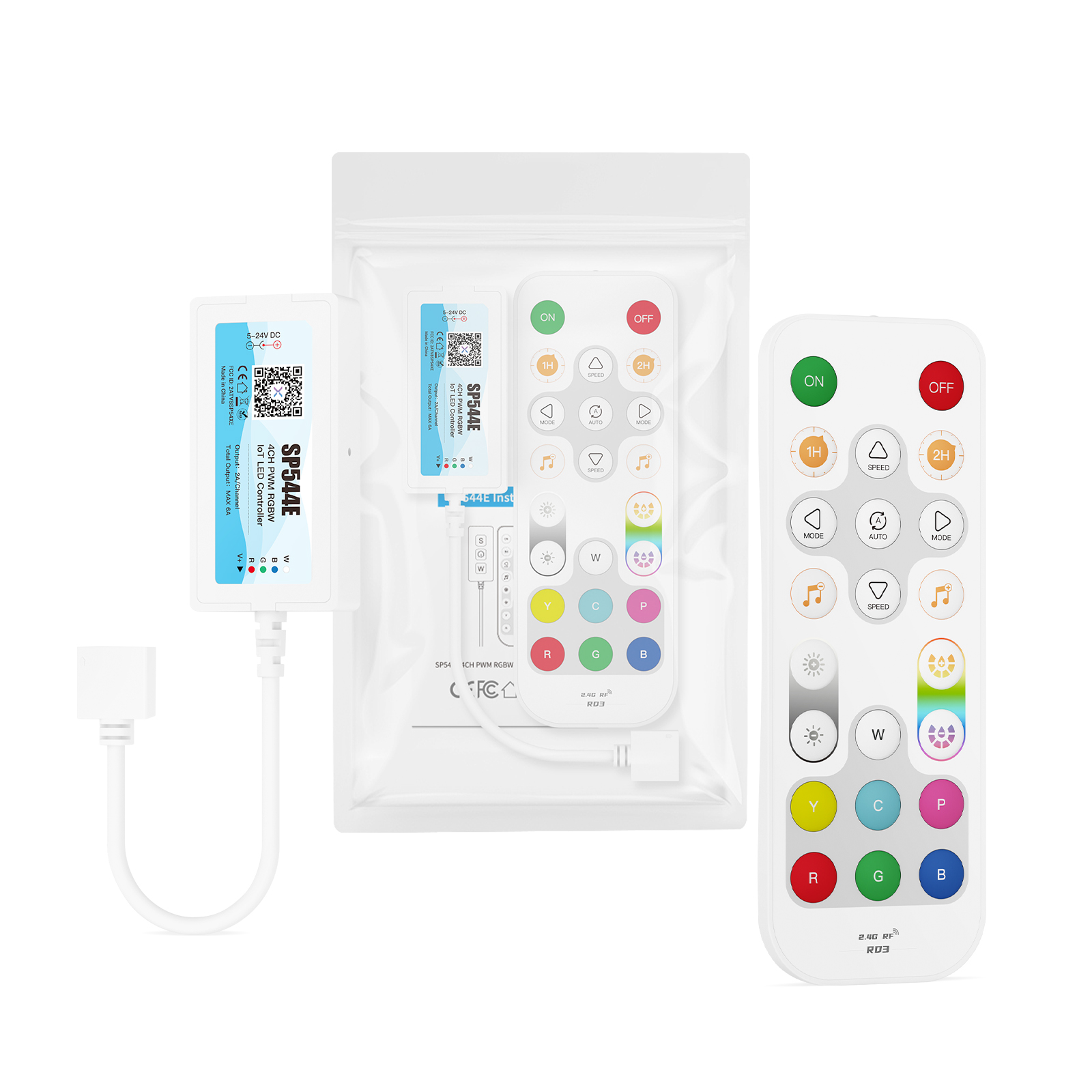

Work With 2.4G Remote Control，The2.4G remote control models(RD3)matched with SP544E are as follows:

• ON Button: Short press:Turns on the light. Long press:Long-press the “ON” buttonwithin 20 seconds of powering on thecontroller to bind/unbind the remote control.
• OFF Button: Short press:Turns off the light. Long press:Within 20 seconds of poweringon the controller,first turn off the light completely,then long-press the “OFF” buttonto clear all paired remote controllers.
• Speed+/-
• Timed 1/2H Delay-OFF
• ALL Effect Cycle
• Mode+/-
• Music+/-
• Brightness+/-
• Color+/-
• Color Select

W: Wite ,
Y/C/P: Yellow/Cyan/Purple
R/G/B: Red/Green/Blue
Support one-to-many control,one remote control can control multiple controllers.Support many-to-one control,each controller can bind up to 5 remote controls.

Smart Speaker Control:

• Hey Google/Alexa, turn on bedroom light
• Hey Google/Alexa,set the bedroom light to warm white
• Hey Google/Alexa,set the brightness of bedroomlight to 80%
• Hey Google/Alexa,set the color temperature ofbedroom light to 3000K
Integrated with smart speaker platforms like Alexa,Google Home,XiaoDu,XiaoAi,enabling voice commands for light switches,brightness,and color control.
The specific connection method can be viewed in the BanlanX APP for details: Login ID→Enter-My Page→Click-Third party intelligentvoice platform.
